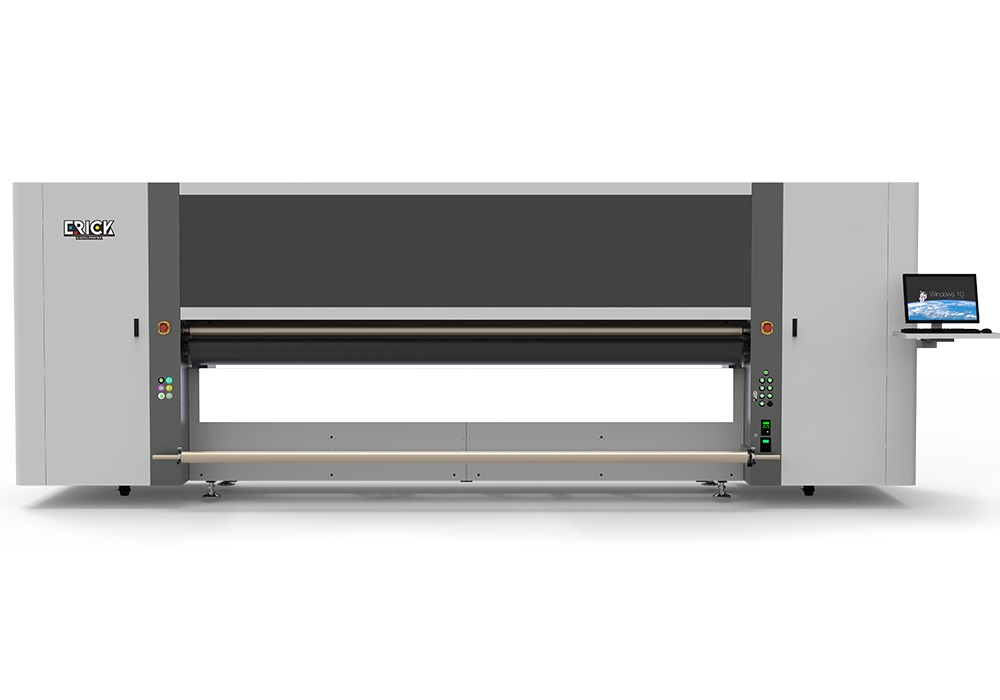

eRICK ER-HR5000 UV Hybrid Printer (5.2m, up to 40 Heads) – Overview

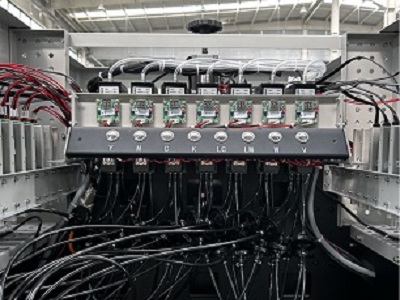

The eRICK ER-HR5000 steps the hybrid concept up to grand format: the factory’s 5.2m-class production platform (factory designation MJ-HD5200PRO) accepts 8 to 40 Ricoh Gen5/Gen6 or Konica 1024i/1024A heads arranged in up to 6 print rows, so capacity scales with your order book. Air-expanding shafts grip rolls of any diameter securely, branded motion hardware – THK rails, Leadshine servos, German tank chain – keeps a very heavy carriage accurate at speed, and rigorous ink filtration protects every head. Ink sets run CMYK LC LM W V on a 6000W electrical package. Image set shows the ERICK hybrid platform plus unbranded grand-format detail photos; the 5m-class body is supplied to order with your chosen head count.
The ER-HR-5000 is for houses printing acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels at grand format. Rows marked (class) are platform-class values confirmed in writing with your quotation.
Key Features
- 8–40 × Ricoh Gen5/Gen6 or Konica 1024i/1024A heads
- Grand-format 5.2m-class print width – no panel stitching
- Up to 6 print-row architecture – capacity scales with heads
- Air-expanding shaft / pneumatic rollers grip any roll diameter
- THK rails, Leadshine servos, German tank chain (branded wear parts)
- Rigorous ink filtration protects the head bank
- Movable front platform, height sensor, anti-collision, ink alarm
- CMYK LC LM W V inks; Caldera / PhotoPrint; i7 touchscreen option
Print Speed (ER-HR5000 (5.2m class) · factory grand-format data)
| Print Mode | Output Speed |
|---|---|
| Print-row architecture | Up to 6 head rows – matches all production needs |
| Throughput | Scales with chosen head count (8–40 heads) – speed matrix (class) confirmed at order |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | eRICK ER-HR5000 (grand-format platform, 5.2m class) |
| Print Heads | 8–40 × Ricoh Gen5 / Gen6 / Konica 1024i / 1024A |
| Print Width | 5200 mm class (5m-class bodies to order) |
| Ink Colours | CMYK LC LM W V (UV LED curable) |
| Machine Functions | Movable front platform, lack-ink alarm, anti-collision device, independent ink heating control, negative ink supply, print height sensor |
| Machine Configuration | THK guideway, Leadshine motor, BYHX board, German imported tank chain, all-in-one computer (optional) |
| All-in-One Computer (optional) | 8th-gen i7-8750H, 64/128 GB, 15.6-in 1920×1080 touchscreen |
| RIP Software | Caldera / PhotoPrint |
| Power / Environment | 6000W; 20–28 °C, 40–70% RH |
| Package | 7880 × 2084 × 1846 mm, 4500 kg (5.2m class, official) |
Applications
Typical work: acrylic & ACP sign boards, glass & mirror decoration, wooden & MDF panels, ceramic tiles, PVC / sunboard & KT board, metal sheets, flex banners, vinyl stickers, wallpaper, backlit film, canvas, ceiling & interior décor panels and exhibition panels. One hybrid machine serves signage fabricators, interior décor studios, advertising agencies, exhibition builders and print houses that handle both rigid boards and roll media.
Why Buy from Unified Engineering Dynamics?
- Genuine eRICK machines – original ERICK UV hybrid printers (Aily Group factory configuration), supplied with full warranty and genuine Epson / Ricoh / Konica print heads as specified.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched UV inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
