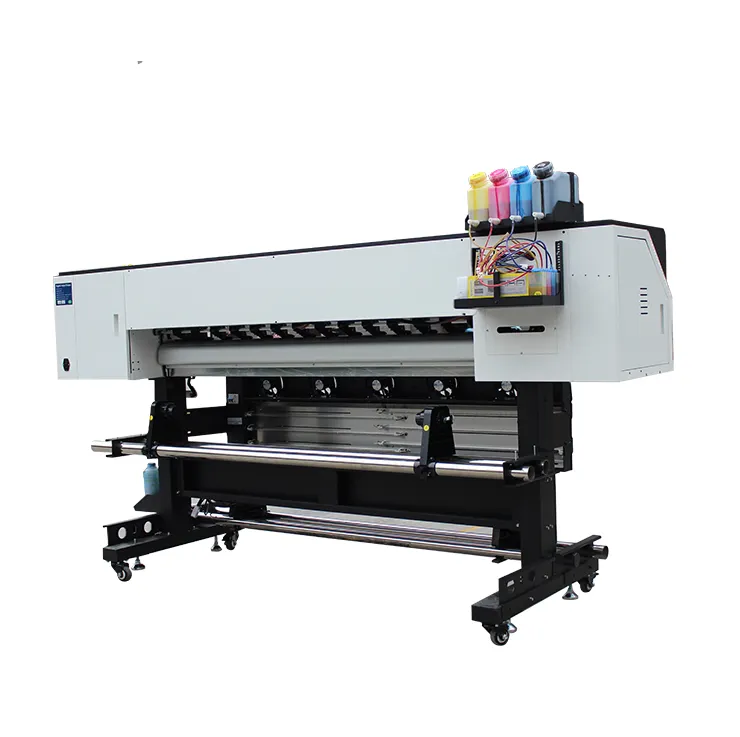

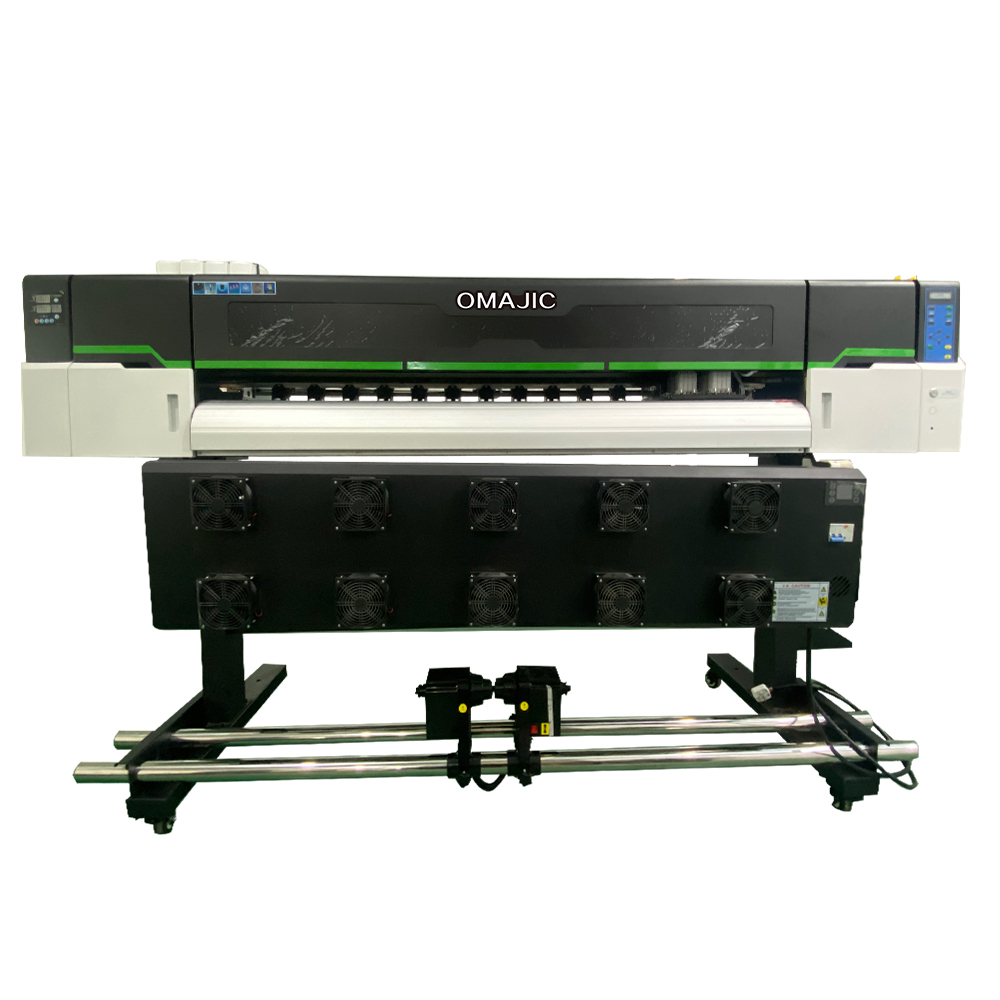

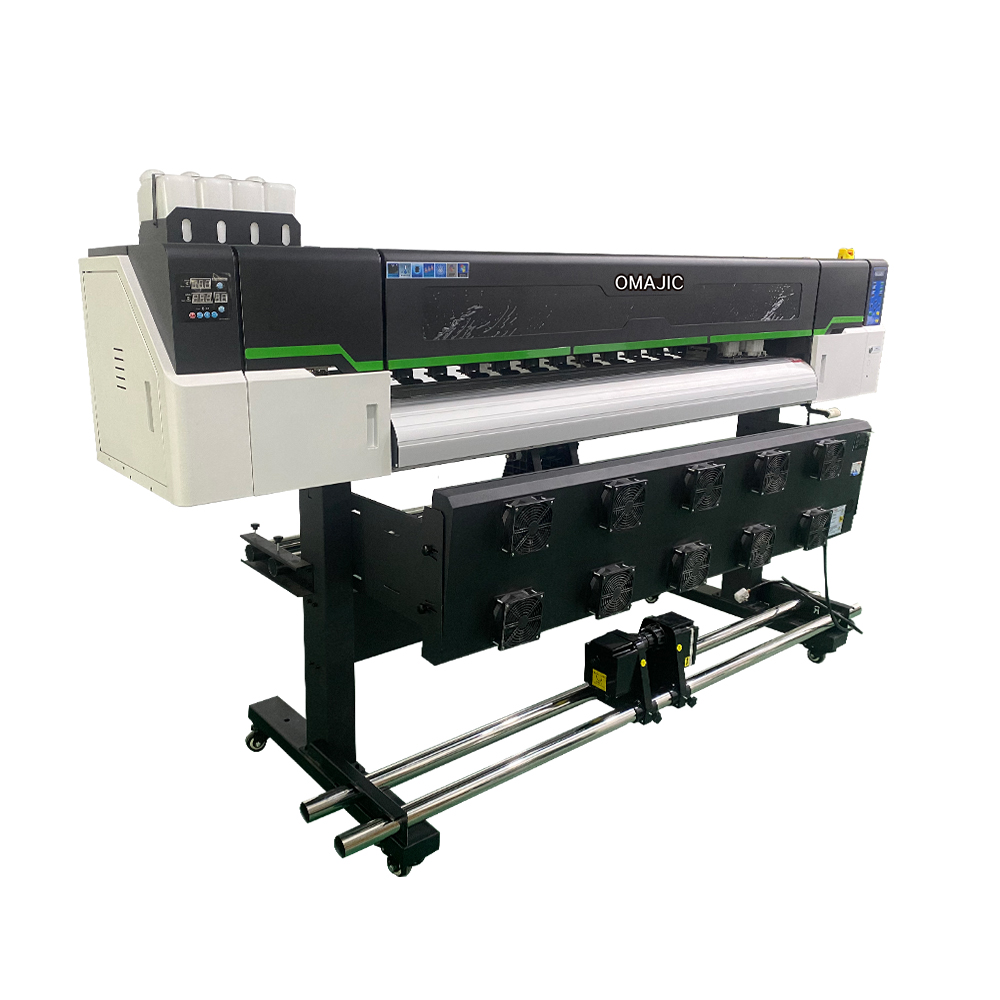

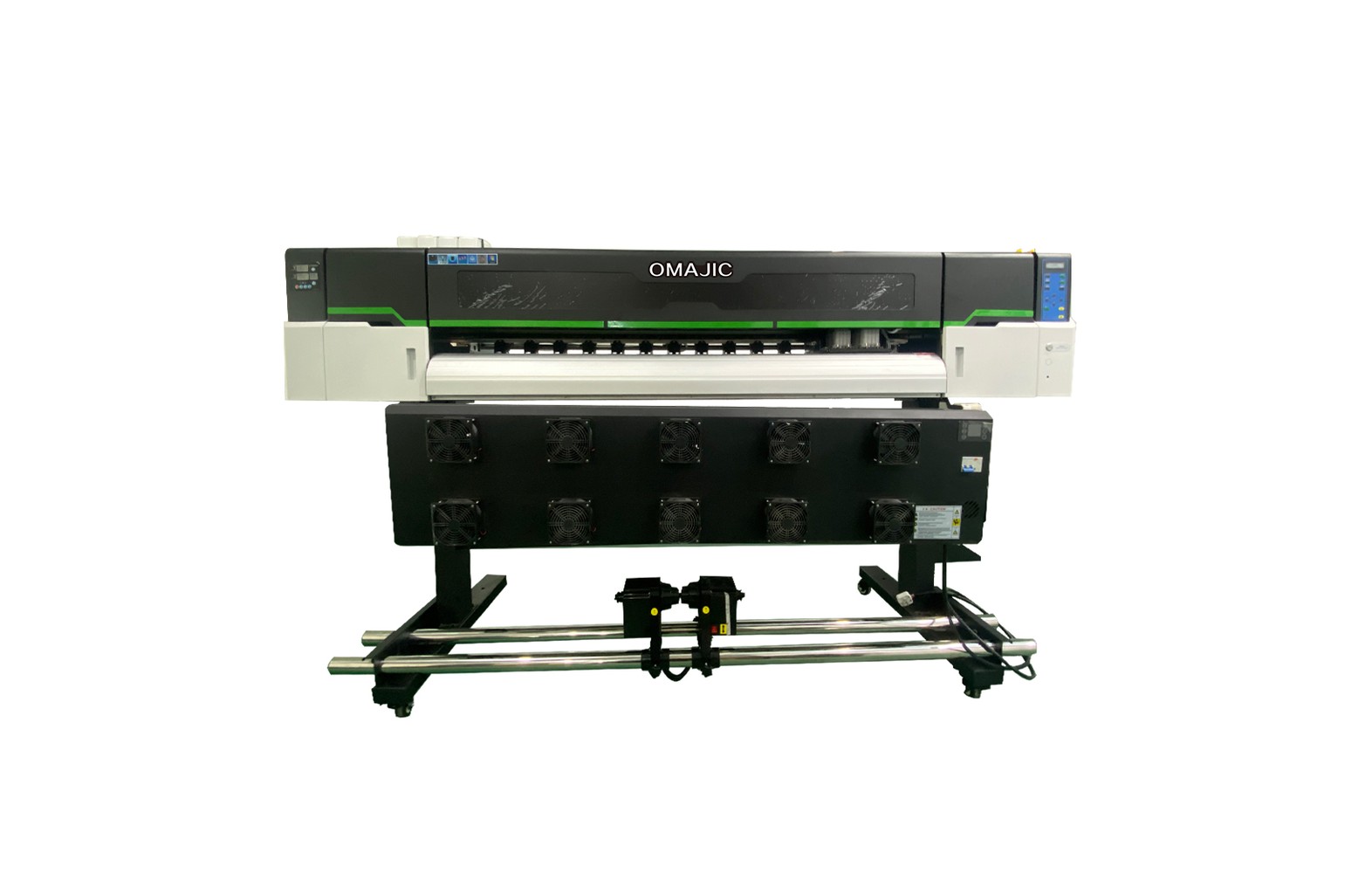

OMAJIC OM 1804PRO Eco Solvent Printer – Overview
The OMAJIC OM 1804PRO Eco Solvent Printer is for volumes that eat dual-head machines for breakfast. Four Epson i3200-E1 heads under OMAJIC’s advanced board-control technology deliver the dual benefits that define a production asset: speed (up to 80 m²/h in 4-pass) and durability (industrial head-protection design, automatic continuous ink-tube cleaning and a stable positive-pressure supply that keeps jetting consistent on 10-hour runs). Print setup can be automatic or manual, feeding calibration is adjustable mid-print, and everything can be run from the panel or the RIP workstation.
The OM-ECO1804PRO runs all day on self-adhesive vinyl stickers, car decals & vehicle graphics, PP & photo paper posters, backlit / lightbox film, canvas prints, non-woven fabric, wallpaper, one-way vision and flex banner work. Solvent and eco-solvent prints are waterproof and UV-resistant for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Advanced board-control technology with industrial-grade printhead protection design
- Automatic or manual print setup; feeding calibration adjustable during printing
- Control from computer or directly from the printer panel
- Automatic continuous ink-tube cleaning – less clogging, longer head life

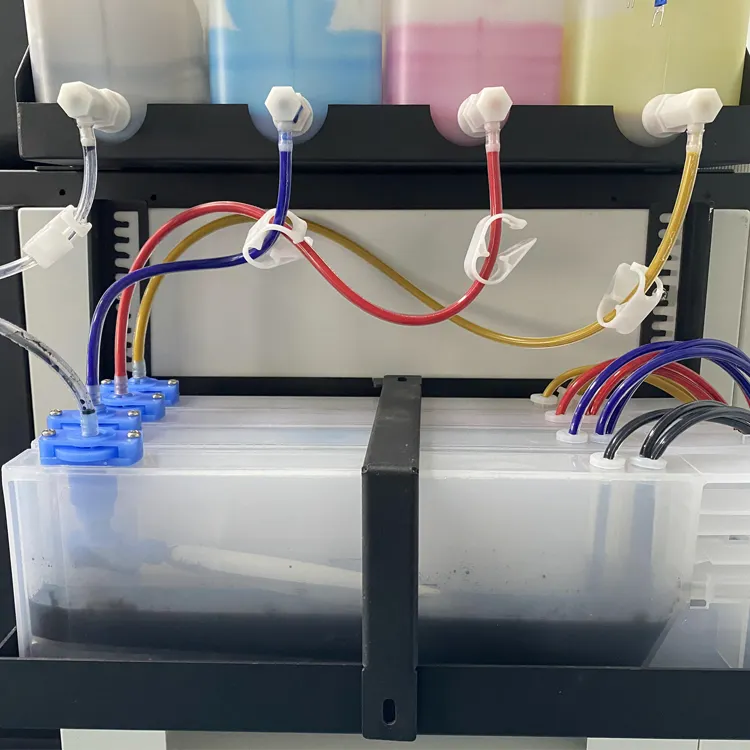

- Stable continuous ink supply (2 L bulk tank, positive pressure)
- Convenient, intuitive operation interface – new operators learn in a day
- Up / down lifting ink station for reliable head capping & moisture
- MainTop 6.1 / PhotoPrint 19 RIP – Windows 7 / 10, LAN connectivity
Print Speed (4-head configuration, class-typical manufacturer figures)
| Print Mode | Output Speed |
|---|---|
| 4 pass (720×1200 dpi) | up to ~80 m²/h |
| 6 pass (720×1800 dpi) | up to ~55 m²/h |
| 8 pass (720×2400 dpi) | up to ~40 m²/h |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and feather mode.
Technical Specifications
| Model | OM-ECO1804PRO |
| Print Head | 4 × Epson i3200-E1 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Print Width | 1750 mm (media up to 1800 mm) |
| Media Thickness | 1–5 mm, adjustable |
| Ink Type | Eco-solvent ink |
| Ink Supply | Stable continuous supply system, positive-pressure bulk tanks |
| Colours | 4 colours (Cyan, Magenta, Yellow, Black) |
| Printing Resolution | Maximum 2400 dpi |
| Media | PP paper, photo paper, car sticker, backlit/lightbox film, canvas, non-woven, vinyl, flex banner, wallpaper |
| Maintenance | Automatic continuous ink-tube cleaning; lifting ink capping station |
| RIP Software | MainTop 6.1 / PhotoPrint 19 |
| Interface | LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Computer | Windows 7 / Windows 10 |
| Operating Environment | 27–35 °C recommended, 40–60% RH |
Applications
Typical work: self-adhesive vinyl stickers, car decals & vehicle graphics, PP & photo paper posters, backlit / lightbox film, canvas prints, non-woven fabric, wallpaper, one-way vision and flex banner work. The machine is at home in flex printing units, signage fabricators, advertising agencies and in-house brand print rooms.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
