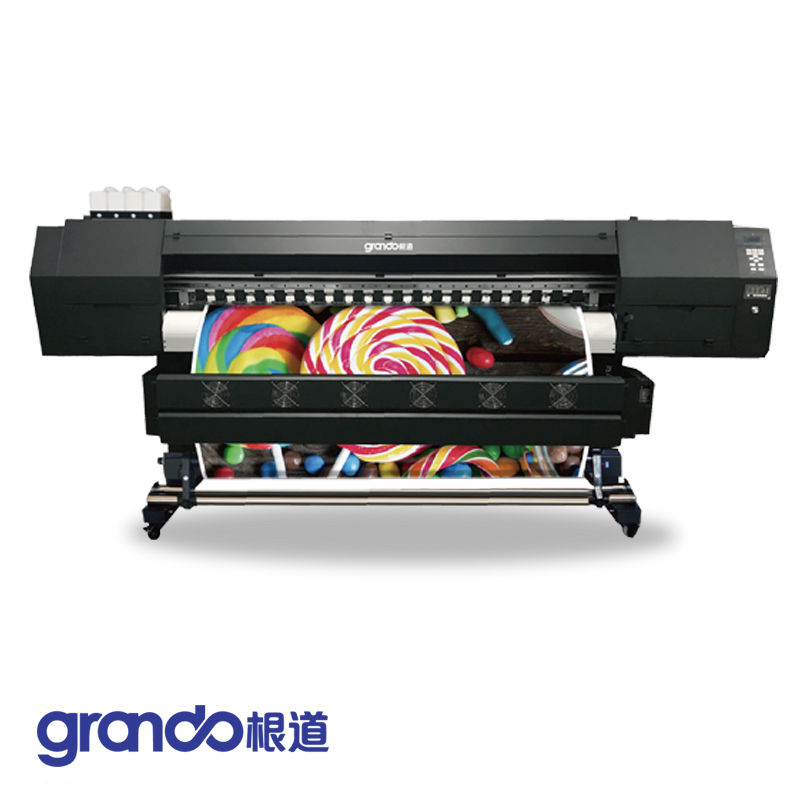

GRANDO BEJ-1802 Eco Solvent Printer – Overview
The GRANDO BEJ-1802 Eco Solvent Printer moves you into the 1.8 m format – the worldwide standard for exhibition graphics, vehicle wraps and premium signage. Two Epson I3200 heads on THK mute rails reach 55 m²/h in 3-pass mode, while the 4×4 CISS (220 ml cartridges + 1.5 L tanks) keeps consumable costs low; shops wanting finer photographic output can order 6-colour (Lc Lm) or 8-colour configurations from day one.
Designed as a true roll-to-roll production machine, the BEJ-1802 prints on flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Whether the job is a single vehicle wrap or a 50-roll banner contract, output stays consistent from the first metre to the last.

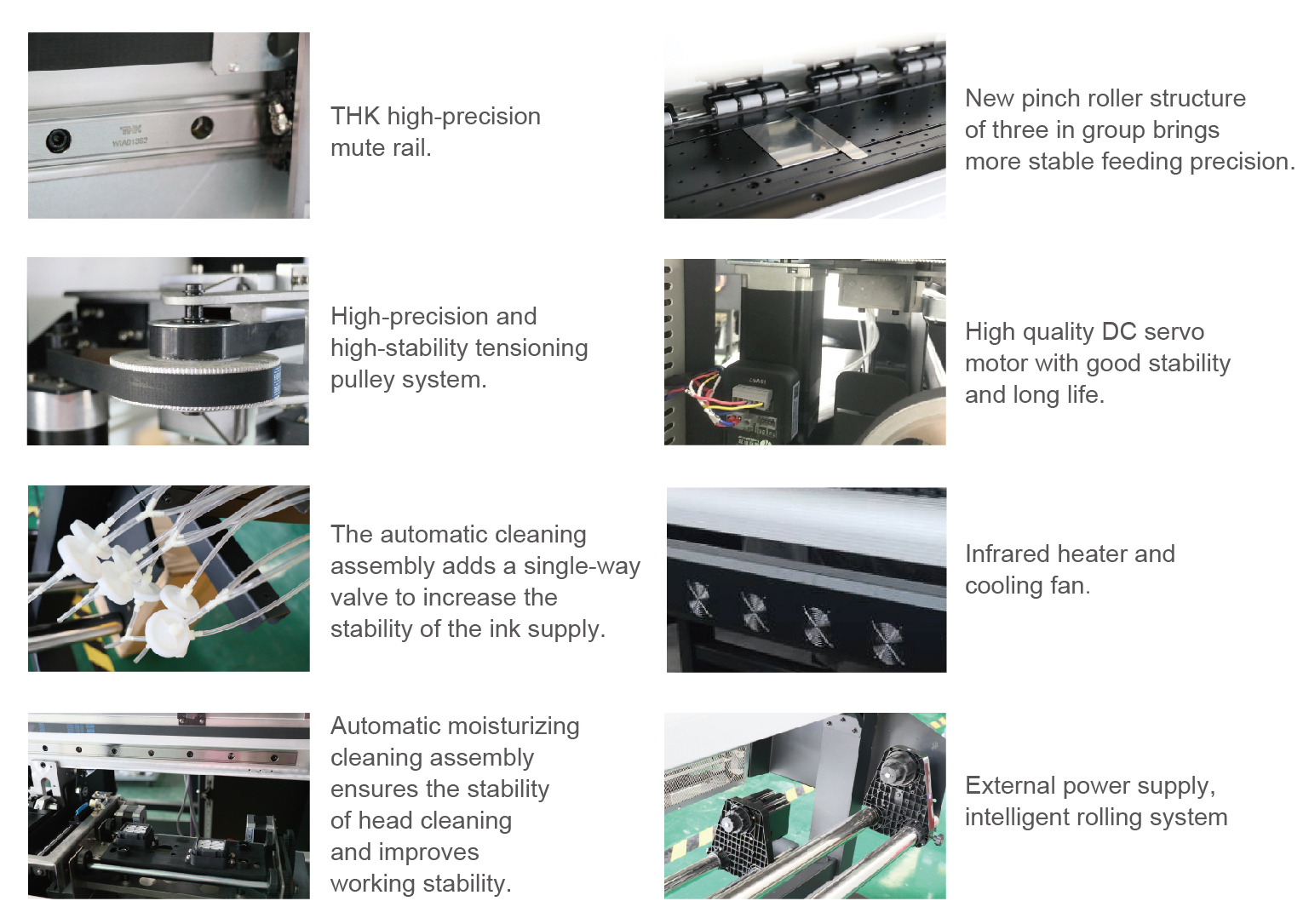

Key Features
- Dual Epson I3200 heads – up to 55 m²/h (3 pass), 40 m²/h (4 pass)
- 1.8 m width with 1.5 mm media thickness tolerance – from thin films to board-backed vinyl
- 4×4 CISS standard; 6×6 and 8×8 CISS optional for extended gamut
- Automatic moisturising cleaning assembly with single-way valve – stable ink supply
- High-precision, high-stability tensioning pulley system
- Three-in-group pinch roller structure for accurate feeding
- THK mute rail + DC servo motor – quiet, durable mechanics

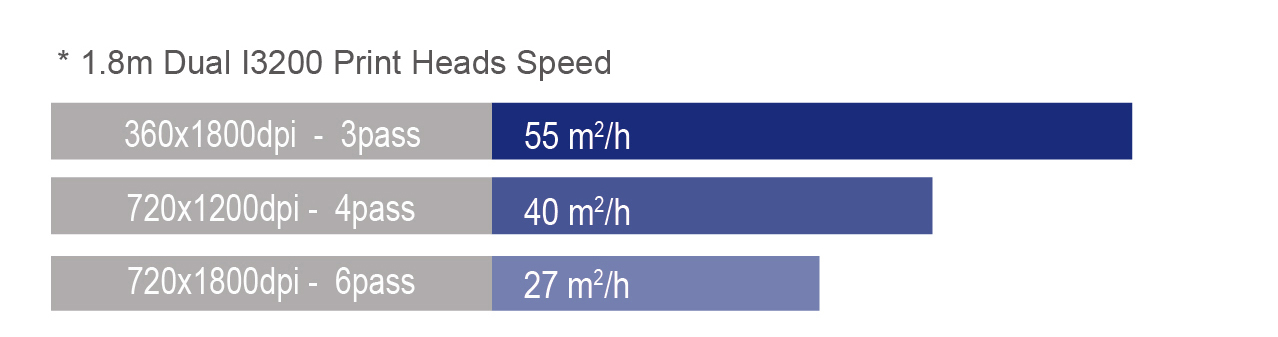

Print Speed
| Print Mode | Output Speed |
|---|---|
| 3 pass (360×1800 dpi) | 55 m²/h |
| 4 pass (720×1200 dpi) | 40 m²/h |
| 6 pass (720×1800 dpi) | 27 m²/h |
Real-world speed depends on media, RIP settings and pass count; figures above are manufacturer test conditions.
Technical Specifications
| Model | BEJ-1802 |
| Print Head | Dual Epson I3200 print heads |
| Printing Technology | Piezoelectric inkjet |
| Max. Printing Width | 1800 mm |
| Acceptable Media | Width 1820 mm · Thickness max. 1.5 mm · Weight max. 60 kg |
| Ink Type | Eco-solvent ink |
| Ink Supply | 4×4 CISS (220 ml cartridges + 1.5 L tank); 6×6 / 8×8 CISS optional |
| Colours | 4 colours CMYK (6-colour / 8-colour optional) |
| Printing Resolution | Maximum 2400 dpi |
| Media Heating | Integrated post heater + infrared dryer + fan system |
| Interface | USB 3.0 / LAN |
| Power Supply | AC 220 V ± 10%, 50/60 Hz |
| Dimensions (with stand) | 3232 (W) × 1172 (D) × 1884 (H) mm |
| Weight (with stand) | 280 kg |
| Package Dimensions | 3350 (W) × 760 (D) × 1040 (H) mm |
| Package Weight | 378 kg |
| Operating Environment | Power on: 15–32 °C, 35–80% RH · Power off: 5–40 °C, 20–80% RH |
| Standard Accessories | USB cable, media clamp, drain bottle, ink cartridges, RIP software, manual |
Applications
The BEJ-1802 is at home in signage shops, photo labs, exhibition fabricators and advertising agencies producing flex banners, vinyl hoardings, self-adhesive vinyl stickers, vehicle wraps and car stickers, backlit film and lightbox posters, photo paper, PP paper, canvas, non-woven fabric, wall cloth, mesh, one-way vision film and transparent film. Prints are waterproof, UV-resistant and scratch-tolerant for long-term outdoor use.
Why Buy from Unified Engineering Dynamics?
- Authorized Grando supply in India – genuine machines with official configuration, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine spare parts and print heads in stock, remote diagnostics.
- Consumables supply – matched eco-solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
