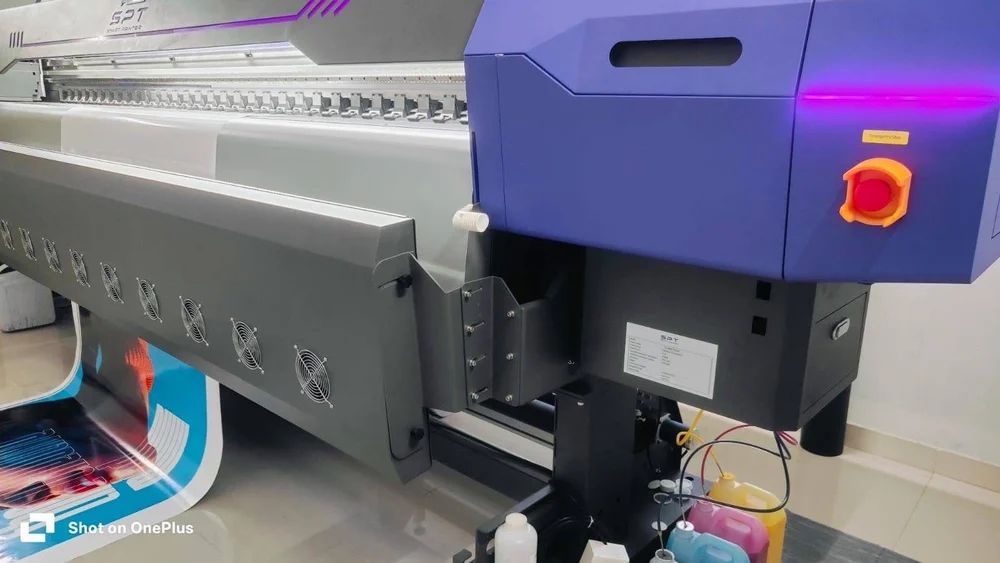

SPT T8 PRO 320 (1024i) Flex Printing Machine – Overview
The SPT T8 PRO 320 (1024i) upgrades the proven 10-foot T8 chassis with Konica Minolta 1024i heads – double the nozzle count and a 13PL fine-droplet option for visibly sharper images at production class speed. It is the variant print units choose when backlit film, close-view branding and premium vinyl graphics must leave the shop without a quality compromise.
The SPT-T8PRO320-1024I runs daily production on flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- Konica Minolta KM1024i heads – 1024 nozzles per head, 13PL/30PL options
- Higher firing frequency – more speed at equal quality than 512i class
- Finer 13PL droplet for close-view, backlit and premium vinyl work
- 3200mm (10 ft) width, 8-head platform, up to ~240 m²/h (class)
- Stable high-speed firing for continuous 2-shift production
- Triple-zone pre/IR/post heating with automatic drying

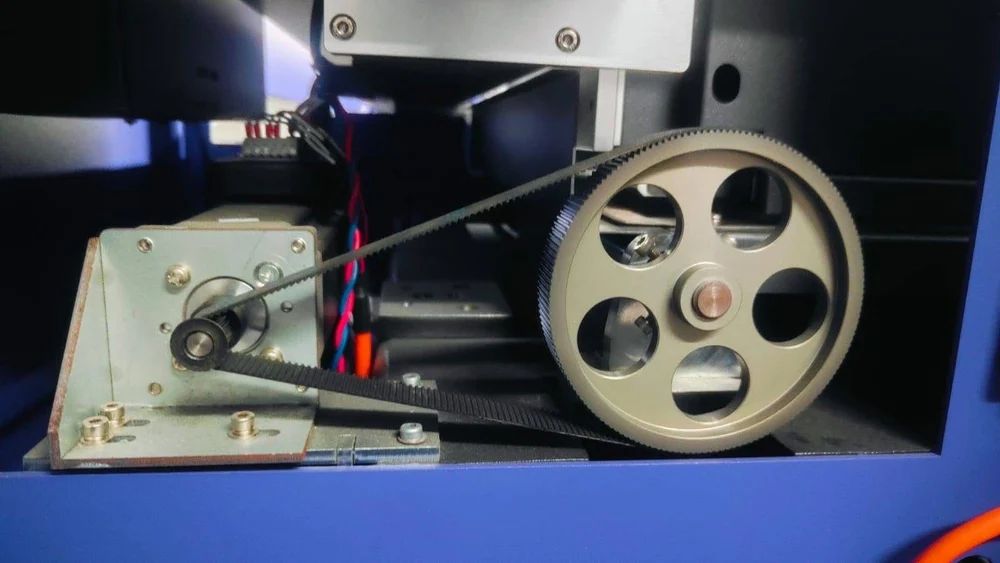

- Anti-collision protection and precision media feed & take-up
- USB workflow; UltraPrint / PhotoPrint / MainTop RIP
Print Speed (KM1024i 8-head platform · class figures)
| Print Mode | Output Speed |
|---|---|
| Draft / speed mode | up to ~240 m²/h (class) |
| Production mode | up to ~180 m²/h (class) |
| Quality mode | up to ~120 m²/h (class) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | SPT T8 PRO 320 (1024i) |
| Print Heads | Konica Minolta KM1024i (13PL / 30PL), 8-head platform |
| Print Width | 3200 mm (10 ft) |
| Colours | 4 colours – CMYK |
| Ink Type | Solvent ink |
| Resolution | up to 720–1440 dpi class |
| Media | Flex, banner, vinyl, backlit film, one-way vision, mesh, canvas |
| Media Heating | Pre-heater, infrared heater, post heater |
| Media Handling | Automatic feed & take-up |
| Interface | USB |
| RIP Software | UltraPrint / PhotoPrint / MainTop |
| Power Supply | AC 220V ±10%, 50/60Hz |
| Operating Environment | 20–28 °C recommended, 20–80% RH (non-condensing) |
Applications
Typical work: flex banners, vinyl hoardings, backlit flex displays, one-way vision film, mesh banners, PVC vinyl stickers & vehicle graphics, canvas, reflective media and outdoor advertising cloth. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Genuine imported SPT machines – original factory configuration with standard electronics and manufacturer-backed warranty support, not grey-market refits.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – Indian service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
