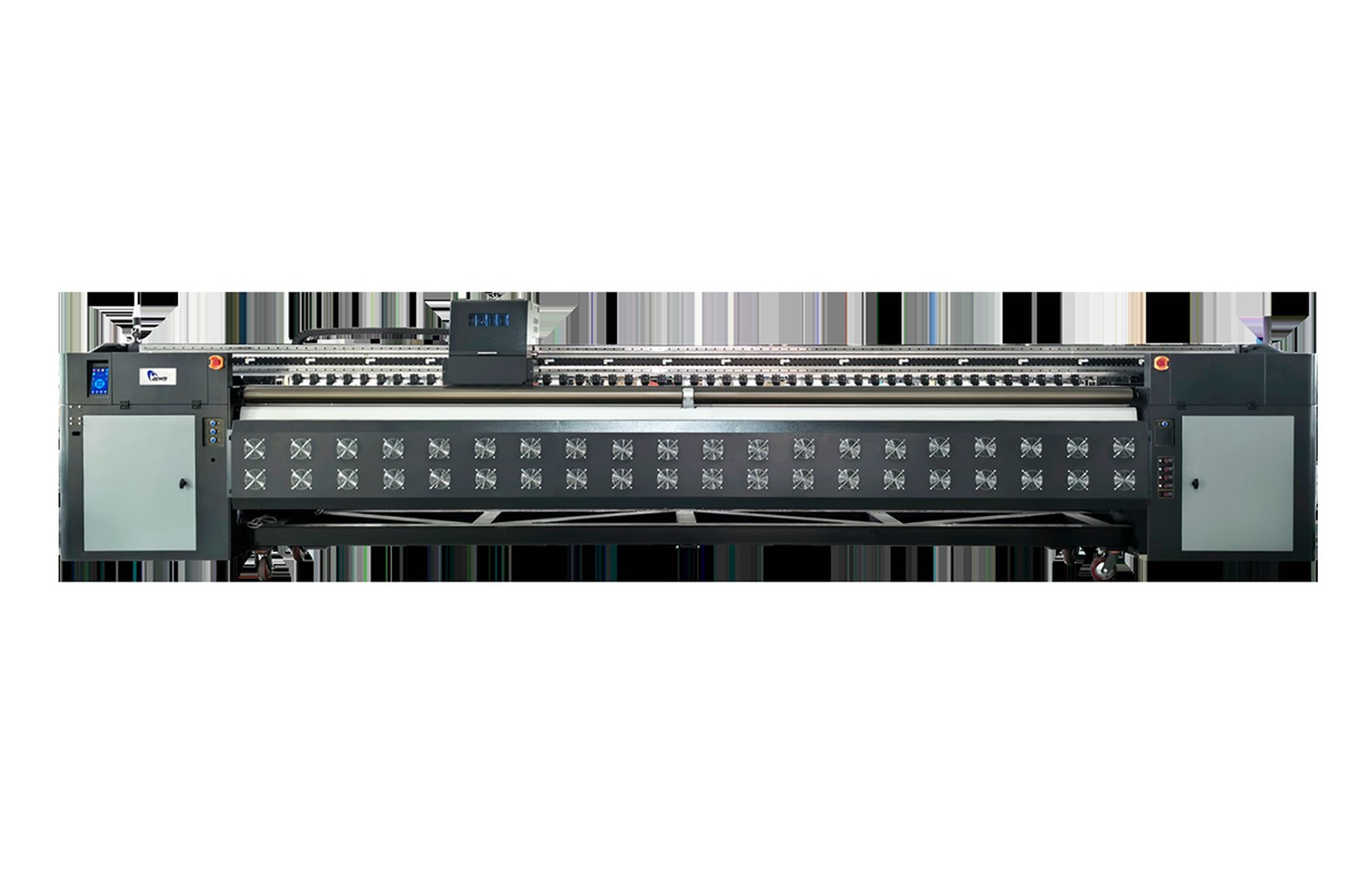

UED 5.3m Solvent Printer (4× 9888H Heads) – Overview
The UED pairs grand 5.3-metre width with the fine detail of the new-generation Konica 9888H print head. Four heads in a 2-row array deliver 1776-nozzle density per head with variable 5PL/10PL/15PL droplets – so 5-metre billboards, backlit boards and building wraps come out with photo-class smoothness even at viewing distances where other giant printers fall apart. THK mute double guide rails with optional linear motor, negative-pressure supply electronics and a waste-ink collection capping system keep it dependable shift after shift.
The UED-53-04H-9888 runs daily production on 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. Solvent prints are waterproof and UV-stable for long outdoor life, and the machine’s service ecosystem is supported across India.
Key Features
- 4 × Konica 9888H new-generation heads in 2-row array – 1776 nozzles each
- 5PL minimum ink dot, 8-level grayscale – smooth blends at 5.3m width
- 75mm head coverage, 600NPI-class precision – sharp text at giant sizes
- 1-head-2-colour configuration – fewer heads, fine output
- THK mute dual guide rails + optional linear motor for the carriage
- Standard negative-pressure ink supply – stable flow, less waste
- Stepless head-height adjustment; capping station with waste-ink tank
- Intelligent infrared drying with heater fans for 5m media handling
Print Speed ( · 9888H platform (2-row 4H); official UED 9888H mode data)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 400×600 dpi | 183 m²/h (≈1970 sqft/hr) |
| 3 pass, 400×900 dpi | 121 m²/h (≈1300 sqft/hr) |
| 4 pass, 400×1200 dpi | 91 m²/h (≈980 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | UED 5.3m Solvent Printer (4× 9888H Heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | 4 × Konica 9888H (1776 nozzles, 296×6 rows, 1-head-2-colour) |
| Drop Volume | 5PL / 10PL / 15PL variable, 8-level grayscale |
| Print Width | 5285 mm max |
| Media | 5m flex, banner, backlit board, vinyl, mesh, fabric (solvent base) |
| Ink | Solvent / UV-curable capable head platform; solvent CMYK |
| Drying System | Infrared heater fan; front & rear heaters 5500W |
| RIP Software | MainTop / PhotoPrint |
| Power | AC 220V / 60A / 50Hz – machine max power 13595W (printing 1495W, IR 6600W) |
| Body / Package | 7800 × 1200 × 1650 mm body; 7850 × 1150 × 2100 mm package |
| Weight | Net 2100 kg / Gross 2350 kg |
| Operating Environment | 20–30 °C, 20–80% RH |
Applications
Typical work: 5-metre flex hoardings, billboards and building wraps, PAV flex, backlit boards, black-back media, mesh banners, SAV stickers, vinyl, stage backdrops, fabric (solvent base) and grand-format outdoor advertising. The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Supplied and warranted by UED – configuration-checked, calibrated and test-printed by our own engineers before dispatch, with UED warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched flex solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation?Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
