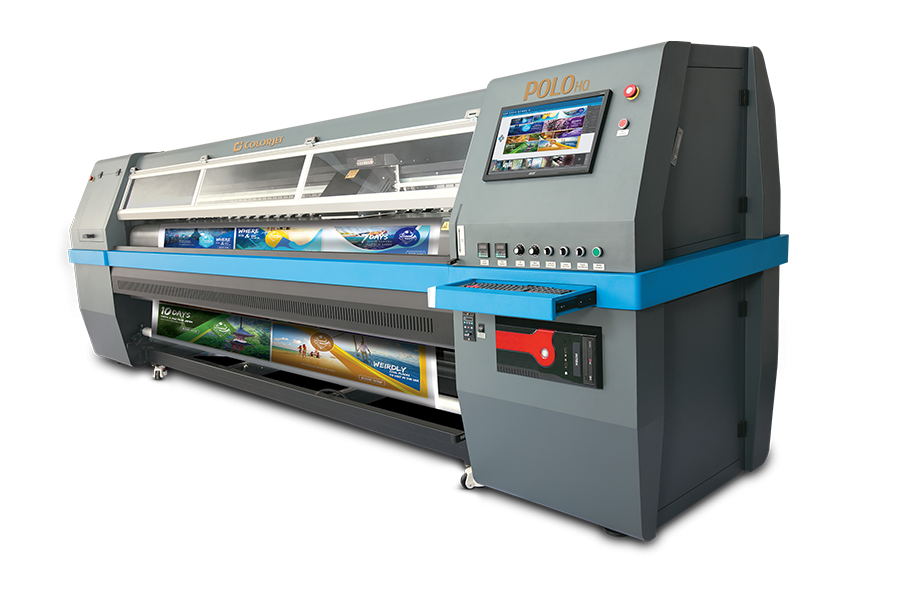

ColorJet Polo HQ High-Speed Eco Solvent Printer (G4425 / G6625) – Overview
The ColorJet Polo HQ is the industrial-grade eco-solvent answer for print houses that want solvent-class speed with eco-friendly operation. Built on a heavy-duty 1500 kg frame with high mechanical precision, it runs 4 or 6 grayscale industrial heads at up to 1175 sqft/hr (109 m²/h) backed by an IR-based evaporative drying system for true mass production. ColorJet’s GreenTech ink mechanism uses non-volatile organic compounds (NVOCs) instead of harmful cyclohexanone – prints stay water-resistant, fade-resistant and UV-safe while the workplace and environment stay cleaner.
The CJ-POLOHQ runs daily production on vinyl & SAV stickers, vehicle wraps, canvas prints, wall & building wraps, backlit film & displays, one-way vision, window film, PVC banner, paper posters, exhibition graphics and fabric (eco-solvent base). GreenTech eco-solvent prints are low-odour, water-resistant, fade-resistant and UV-safe – ready for indoor display and outdoor life alike, with the machine’s service ecosystem supported across India.
Key Features
- G4425: 4 heads, 4 colours CMYK – G6625: 6 heads, 6 colours, widest gamut
- Up to 1175 sqft/hr (109 m²/h) industrial production speed
- GreenTech eco-friendly ink mechanism – NVOC inks, low chemical emissions
- Proprietary AIVC – constant jetting conditions in varying environments
- Sectioned vacuum bed with adjustable vacuum power – flat, wrinkle-free media
- IR heater + controllable drying fan – shorter print-to-application time
- Head height adjustment – handles media up to 5mm thick, reduces wastage
- Motorized dual-roller feed, intelligent take-up, ONYX GammaPrint RIP
Print Speed (Grayscale industrial heads · official ColorJet data)
| Print Mode | Output Speed |
|---|---|
| 2 pass, 540×720 dpi | 109 m²/h (1175 sqft/hr) |
| 3 pass, 540×1080 dpi | 73 m²/h (785 sqft/hr) |
| 4 pass, 540×1440 dpi | 46 m²/h (495 sqft/hr) |
| 6 pass, 540×1080 dpi | 38 m²/h (410 sqft/hr) |
| 8 pass, 540×1440 dpi | 26 m²/h (280 sqft/hr) |
Speeds are manufacturer test-condition figures; real output varies with media, RIP settings and pass count. Rows marked (class) are platform-class figures confirmed at order time.
Technical Specifications
| Model | ColorJet Polo HQ – G4425 (4 heads) / G6625 (6 heads) |
| Printing Technology | Drop-on-demand, piezo electric inkjet |
| Print Heads | Grayscale industrial grade jetting assemblies |
| Colours | 4 colours CMYK (G4425) / 6 colours (G6625) |
| Media Width | 3300 mm |
| Print Width | 3200 mm max |
| Media | Fabric (eco-solvent base), SAV, PVC Banner, Backlit Film, Window Film |
| Roll Capacity | Weight to 150 kg; 76.2 mm / 50.8 mm cores |
| Ink | Eco-solvent GreenTech NVOC inks |
| Max Resolution | 1440 dpi |
| Heating | Pre/post heaters 30–60 °C, dryer 30–60 °C + IR-based evaporative drying |
| Connectivity | High-speed USB |
| Power | AC 220V ±10%, 20A, 50/60Hz |
| Dimensions / Weight | 4960 × 950 × 1580 mm / 1500 kg N.W., 1650 kg G.W. |
| RIP Software | ONYX GammaPrint RIP (ColorJet Edition) |
| Operating Environment | 18–28 °C, 35–80% RH (non-condensing) |
Applications
Typical work: vinyl & SAV stickers, vehicle wraps, canvas prints, wall & building wraps, backlit film & displays, one-way vision, window film, PVC banner, paper posters, exhibition graphics and fabric (eco-solvent base). The machine is at home in flex printing units, signage fabricators, advertising agencies, event & exhibition graphics workshops and outdoor media houses.
Why Buy from Unified Engineering Dynamics?
- Genuine ColorJet machines – official configuration from India’s largest wide-format printer manufacturer, with full warranty support.
- Complete installation & training – on-site setup, RIP software installation, media profiling and operator training included.
- After-sales support – trained service engineers, genuine Konica print heads and spare parts in stock, remote diagnostics.
- Consumables supply – matched eco-solvent & solvent inks, cleaning solution and spares available from our Printing Inks and Printer Spare Parts range.
Need the latest price, a demo print or an EMI quotation? Contact our team today – we reply within one working day with a detailed offer including installation and ink start-up kit options.
